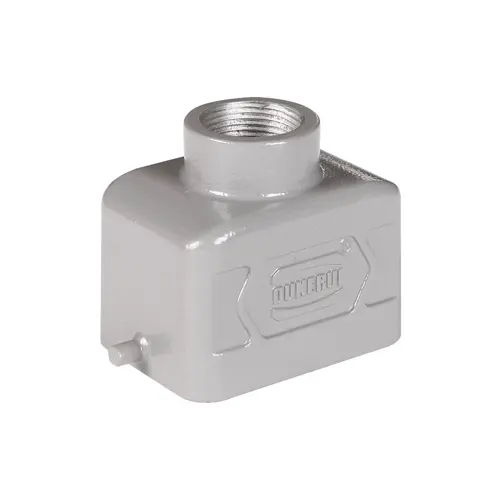

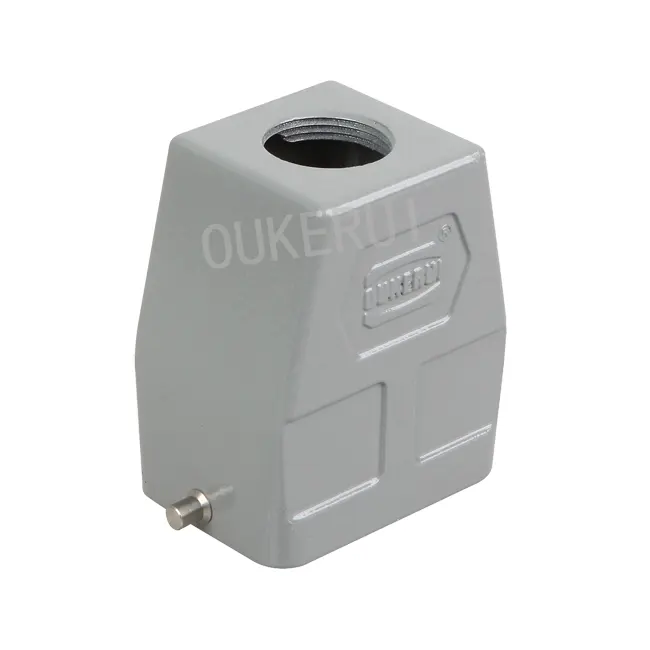

6B Top Entry PG16 Plug Heavy Duty Connector Hoods

Oukerui is a Chinese factory producing 6B Top Entry PG16 Plug Heavy Duty Connector Hoods located in Ningbo, China. We have been manufacturing rugged connectors for over 10 years. Our connectors are CE / UL / ISO9001 certified. We sincerely invite you to join our common career to create brilliance together

Send Inquiry

Product Description

As a professional manufacturer, we would like to offer Oukerui 6B Top Entry PG16 Plug Heavy Duty Connector Hoods. Pressure Resistant Cover / Heavy Duty Cover 6B Plastic Top Entry PG16 Socket Connector Heavy Duty Connector Cover, Epoxy Paint / Chrome Plated, Waterproof and Protective Insert. And we will provide you with the best after-sales service and timely delivery.

Product Description

Oukerui 6B Top Entry PG16 Plug Heavy Duty Connector Hoods is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-H6B-TK-2G-PG16
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Surface	Epoxy powder Coating
Material	Die-casting zinc
Colour	Grey
Locking element	Lever type
-Lever type	Single lever
-Material	Stainless steel
Hoods/Housing seal	NBR
Limiting temperatures	-40~+125ºC
Flammability acc.to UL94	V0
Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
Mounting type	Bulkhead/Surface/Cable to Cable
Couple inserts	HDD-024,HE-006,HEE-010

The option of HZW-6B Hoods

Structure types of Hoods	Low & high alternative
Type of entry	Side & top entry alternative
Locking lever type	Single locking lever
Bolts for hooking	Stainless steel
Thread Size of cable gland	M20/PG13.5/PG16

6B Top Entry PG16 Plug Heavy Duty Connector Hoods are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
