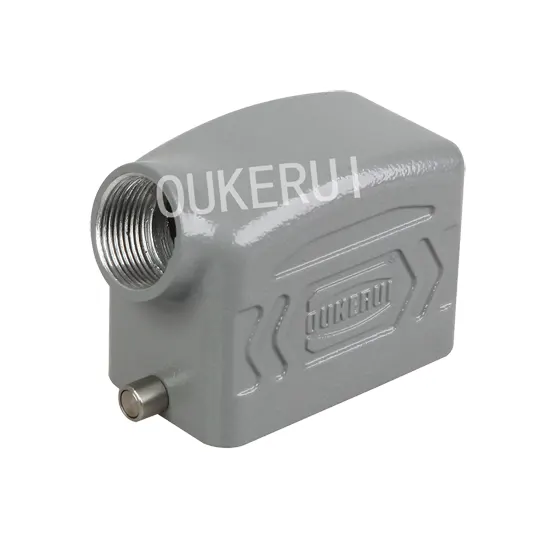

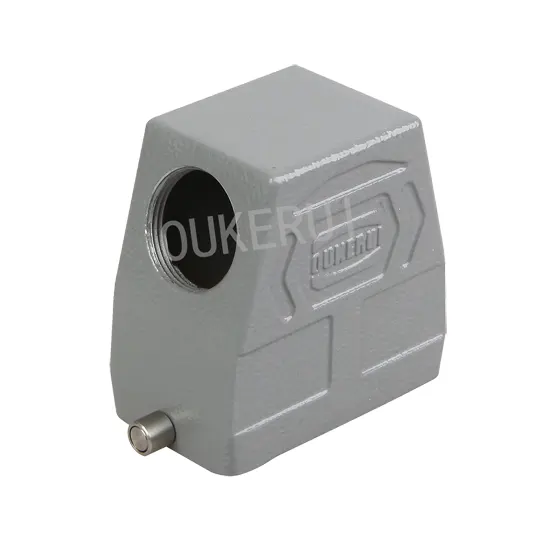

10B Side Entry PG16 Plug Heavy Duty Connector Hoods

Find China's Oukerui 10B Side Entry PG16 Plug Heavy Duty Connector Hoods at OUKERUI to offer professional after-sales service and reasonable price. Our reputation is based on on-time delivery, high quality and competitive pricing. We are eager to be your trusted long-term business partner! The company's products are widely recognized nationwide for their reliability and excellent quality.

Send Inquiry

Product Description

Below is an introduction to the high quality Oukerui 10B Side Entry PG16 Plug Heavy Duty Connector Hoods. 10B Side Entry PG16 Plug Heavy Duty Connector We hope this will help you better understand the hood. Epoxy power / chrome paint, waterproof and insert protection. Double insert HDD-042, HE-010 We welcome old and new customers to continue working with us to create a better future!

Product Description

Oukerui 10B Side Entry PG16 Plug Heavy Duty Connector Hoods is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-H10B-SK-2G-PG16
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Surface	Epoxy powder Coating
Material	Die-casting zinc
Colour	Grey
Locking element	Lever type
-Lever type	Single lever
-Material	Stainless steel
Hoods/Housing seal	NBR
Limiting temperatures	-40~+125ºC
Flammability acc.to UL94	V0
Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
Mounting type	Bulkhead/Surface/Cable to Cable
Couple inserts	HDD-042,HE-010,HEE-018,HVE-003,HK-8/24

The option of HZW-10B Hoods

Structure types of Hoods	Low & high alternative
Type of entry	Side & top entry alternative
Locking lever type	Single locking lever
Bolts for hooking	Stainless steel
Thread Size of cable gland	M20/PG16/M25

The option of HZW-10B housings

Structure of Housing	Low & high alternative
Mounting Type	Bulkhead & Surface Installation
Type of exit	Bottom & Side Exit alternative
Locking lever type	Single Lever /Double Locking Levers
Locking Lever's Material	Stainless steel & steel covering engineering plastic
Thread Size of cable gland	M20/PG16/M25
Cable exit type of high structure	one/two exit

10B Side Entry PG16 Plug Heavy Duty Connector Hoods are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
