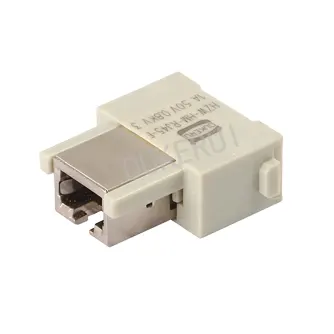

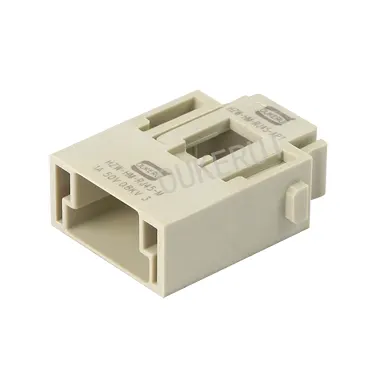

Rj45 Modular Heavy Duty Connector Insert

OUKERUIO is a professional manufacturer. Rj45 Modular Heavy Duty Connector Insert . We have extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our services, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description

OUKERUI is Rj45 Modular Heavy Duty Connector Insert manufacturers and suppliers in China who can wholesale Rj45 Modular Heavy Duty Connector Insert. Can be used in the printing industry. HM-RJ45M/F possess 1A operating current and 50 V operating voltage. Number of contacts are 8.Stranded wire diameter 0.89-0.99mm²

Product Description

Rj45 Modular Heavy Duty Connector Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HM-RJ45M/F
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HM-RJ45M/F
Terminal type	Screw Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	50V
Rated Impulse Voltage	0.8KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Male/Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	1A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	RJ45 Terminal
Screw terminal tightening	0.25Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge	1-2.5mm2(AWG26-14)
Stripping length	7-9mm

Rj45 Modular Heavy Duty Connector Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
