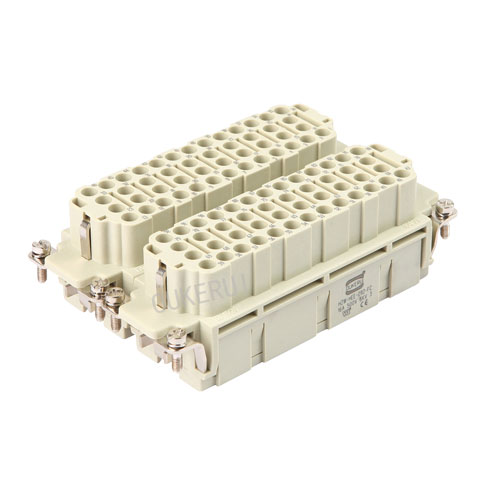

EE 92 500V 16A Heavy Duty Connector Female Insert

OUKERUI is a professional manufacturer and supplier of EE 92 500V 16A Heavy Duty Connector Female Insert in China. Our company's reputation depends on prompt delivery, high quality and competitive price. The company's products are widely recognized throughout the country for their reliability and good quality. and look forward to the future The company will continue to grow and develop.

Send Inquiry

Product Description

As a professional high quality EE 92 500V 16AHeavy Duty Connector Female Insert producer. You can rest assured to buy EE 92 500V 16AHeavy Duty Connector Female Insert from our factory. EE 92 500V 16A Heavy Duty Connector Female Insert are CE and UL certified, ISO certified manufacturer, compatible with Harting and Ilme. We provide the best after-sales service and fast delivery.

Product Description

EE 92 500V 16A Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HEE-092FC
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HEE-092FC
Terminal type	Crimp Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	500V
Rated Impulse Voltage	6KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	16A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Surface Treatment	Silver/Gold Plated
Wire Gauge	0.14-4.0mm2(AWG26-14)
Stripping length	7.5mm

EE 92 500V 16AHeavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
