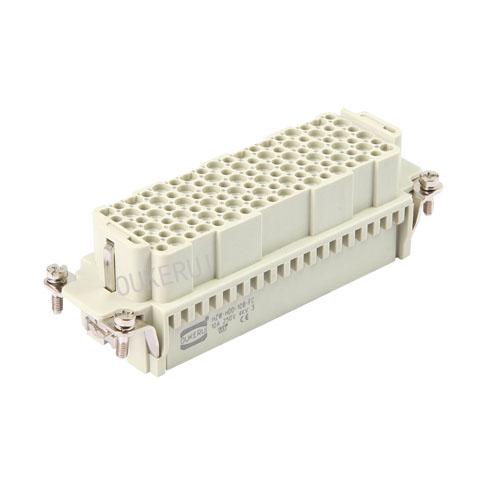

DD 108 250V Heavy Duty Connector Female Insert

You can rest assured to buy DD 108 250V Heavy Duty Connector Female Insert from our factory and we offer you the best after-sales service and fast delivery. We hope to become a long-term Chinese partner with you. Our products have a good price advantage and cover most European and American markets.

Send Inquiry

Product Description

With years of manufacturing experience, DD 108 250V Heavy Duty Connector Female Insert OUKERUI can supply a wide range of DD 108 250V Heavy Duty Connector Female Insert. High Current, Heavy Duty Connector, Multipole Maufacturer, CE and UL Approved, to Replace Harting We are willing to establish a friendly cooperative relationship with your company. Create a better future with high quality products. Affordable price and good service.

Product Description

DD 108 250V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HDD-108FC
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HDD-108FC
Terminal type	Crimp Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	250V
Rated Impulse Voltage	4KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	10A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Surface Treatment	Silver/Gold Plated
Wire Gauge	0.14-2.5mm2(AWG26-14)

DD 108 250V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
