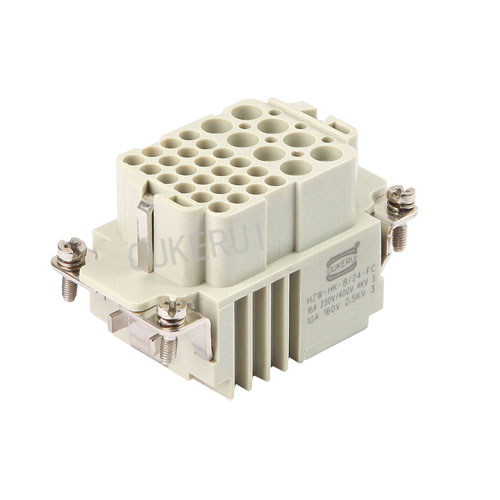

8/24 Pin 400V Heavy Duty Connector Female Insert

OUKERUIO is a professional manufacturer. 8/24 Pin 400V Heavy Duty Connector Female Insert. High quality materials, perfect designs, and high performance at competitive prices are what our customers need, and we can provide them. Our after-sales service is also top-notch. If you are interested in our products, you can contact us, we will reply you in time!

Send Inquiry

Product Description

OUKERUI is 8/24 Pin 400V Heavy Duty Connector Female Insert manufacturers and suppliers in China who can wholesale 8/24 Pin 400V Heavy Duty Connector Female Insert can be used in the printing industry. 8/24 Pin 400V Heavy Duty Connector Female Insert,Multi-pole industrial connectors with CE and UL approval, production kits. Heavy duty original connector housings for the automation industry in widely used wiring harnesses.

Product Description

8/24 Pin 400V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HK-8/24-F
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HK-8/24-F
Terminal type	Crimp Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	230/400V
Rated Impulse Voltage	4KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	16A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Screw terminal tightening	0.5Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge(Power area)	1.5-16mm2(AGW16-6)
Wire Gauge(Signal area)	1.0-2.5mm2(AWG18-14)

8/24 Pin 400V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
