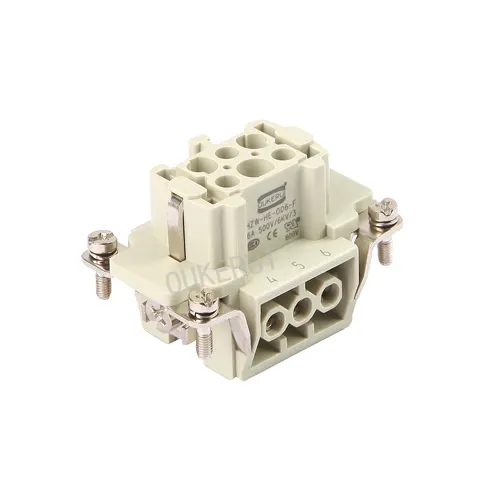

6 Pin 16A 500V Heavy Duty Connector Female Insert
OUKERUI is 6 Pin 16A 500V Heavy Duty Connector Male Insert manufacturer and supplier in China, able to wholesale 6 Pin 16A 500V Heavy Duty Connector Female Insert. We offer professional service and better price. If you are interested in our 6 Pin 16A 500V Heavy Duty Connector Male Insert, please contact us. Preserve reliable quality, attentive price and complex services
Send Inquiry PDF DownLoad
Product Description
You can rest assured to buy customized 6 Pin 16A 500V Heavy Duty Connector Female Insert from us. Our products are exported to more than 30 countries with strong technical support. Outstanding quality and service.We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Product Description
6 Pin 16A 500V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Basic Info.
| Model NO. | HZW-HE-006-F |
| Contacts Surface Treatment | Silver/Glod Plated |
| Housing Material | Die-Casting Aluminum Alloy |
| Working Environments | IP65 for Various Harsh Environments |
| Contact Cost | Pay Additional Cost for Crimp Contacts |
| Specification | CE, UL, ROHS |
| Origin | China |
| Production Capacity | 3000pieces Per Day |
| Certification | UL |
| Contact Material | Copper |
| Housing Coating | Anti-Corrosion Powder Spray |
| Crimp Tooling | Available |
| Transport Package | Poly bag and Double Cartons |
| Trademark | Oukerui |
| HS Code | 8536900000 |
SPECIFICATION
| Model No. | HZW-HE-006-F |
| Terminal type | Screw Terminal |
| Housings material | Dia casting aluminum alloy |
| Working Voltage | 500V |
| Rated Impulse Voltage | 6KV |
| International protection(IP) grade | IP65 |
| Flammability | V0 |
| Mechanical Life Span | Min 500 times |
| Warranty | 1 Year |
| Gender type | Female |
| Contacts' surface processing | Silver or Gold Plated |
| Mounting type | Bulkhead/Surface/ cable to cable |
| Insert Block | Top grade PC |
| Working Current | 16A |
| Temperature Bearing Range | -40ºC~+125ºC |
| Pollution Degree | 3 |
| Transport packing | Carton |
SPECIFICATION OF CONTACT
| Material | Copper Alloy |
| Terminal | Screw/Crimp Terminal |
| Screw terminal tightening | 0.5Nm |
| Surface Treatment | Silver/Gold Plated |
| Wire Gauge | 1.0-2.5mm2(AWG18-14) |
| Stripping length | 7-9mm |
6 Pin 16A 500V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
