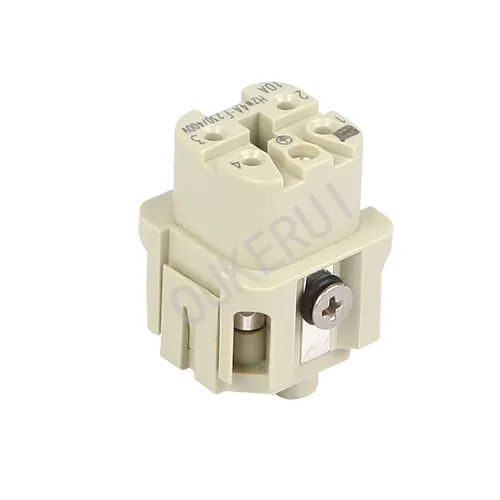

4 Pin 10A 230/400V Heavy Duty Connector Female Insert
OUKERUI is a professional China 4 Pin 10A 230/400V Heavy Duty Connector Female Insert manufacturer and supplier, if you are looking for the best 3A Top Entry M20 Plug Heavy Duty Connector Hoods with low price, consult us now.We are committed to maintaining a high level of professionalism, service and quality.
Send Inquiry PDF DownLoad
Product Description
With years of experience in keyword production, the company name can provide a variety of 4 Pin 10A 230/400V Heavy Duty Connector Female Insert. High quality 4 Pin 10A 230/400V Heavy Duty Connector Female Insert can fulfill different uses. If you need them, use our timely online 4 Pin 10A 230/400V Heavy Duty Connector Female Insert service. In addition to the product list below, you can customize your own unique 4 Pin 10A 230/400V Heavy Duty Connector Female Insert to suit your specific needs.
Product Description
4 Pin 10A 230/400V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Basic Info.
| Model NO. | HZW-HA-004F |
| Contacts Surface Treatment | Silver/Glod Plated |
| Housing Material | Die-Casting Aluminum Alloy |
| Working Environments | IP65 for Various Harsh Environments |
| Contact Cost | Pay Additional Cost for Crimp Contacts |
| Specification | CE, UL, ROHS |
| Origin | China |
| Production Capacity | 3000pieces Per Day |
| Certification | UL |
| Contact Material | Copper |
| Housing Coating | Anti-Corrosion Powder Spray |
| Crimp Tooling | Available |
| Transport Package | Poly bag and Double Cartons |
| Trademark | Oukerui |
| HS Code | 8536900000 |
SPECIFICATION
| Model No. | HZW-HA-004F |
| Terminal type | Screw Terminal |
| Housings material | Dia casting aluminum alloy |
| Working Voltage | 230/400V |
| Rated Impulse Voltage | 4KV |
| International protection(IP) grade | IP65 |
| Flammability | V0 |
| Mechanical Life Span | Min 500 times |
| Warranty | 1 Year |
| Gender type | Female |
| Contacts' surface processing | Silver or Gold Plated |
| Mounting type | Bulkhead/Surface/ cable to cable |
| Insert Block | Top grade PC |
| Working Current | 10A |
| Temperature Bearing Range | -40ºC~+125ºC |
| Pollution Degree | 3 |
| Transport packing | Carton |
SPECIFICATION OF CONTACT
| Material | Copper Alloy |
| Terminal | Screw/Crimp Terminal |
| Screw terminal tightening | 0.25Nm |
| Surface Treatment | Silver/Gold Plated |
| Wire Gauge | 1.0-2.5mm2(AWG18-14) |
4 Pin 10A 230/400V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
