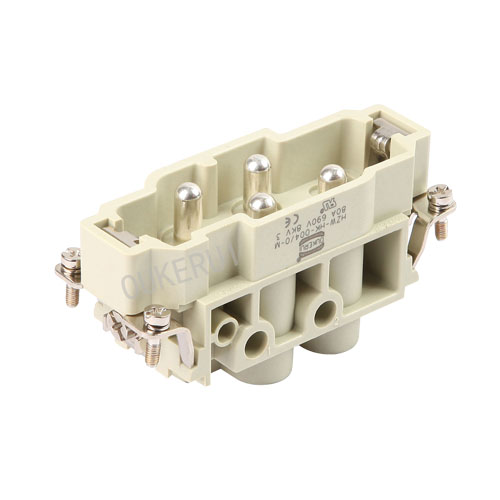

4/0 Pin 80A Heavy Duty Connector Male Insert

OUKERUI is a Chinese factory producing 4/0 Pin 80A Heavy Duty Connector Male Insert situate in Ningbo, China. We have been producing heavy-duty connectors for more than 10 years, with rich experience in production The connectors are CE/UL/ISO 9001 certified. We can provide excellent quality and first-class service We are constantly growing and progressing, and our market share is also expanding.

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of heavy duty connectors. 4/0 Pin 80A Heavy Duty Connector Male Insert The number of connectors is 4/0 Pin, with 80A operating current and 690V operating voltage. The material of our ferrules is polycarbonate. Robust design and special corrosion-resistant powder coating for use in harsh environments.

Product Description

4/0 Pin 80A Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HK-4/0-M
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HK-4/0-M
Terminal type	Screw Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	690V
Rated Impulse Voltage	8KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Male
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	80A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Screw terminal tightening	0.5Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge(Power area)	1.5-16mm2(AGW16-6)
Wire Gauge(Signal area)	1.0-2.5mm2(AWG18-14)

4/0 Pin 80A Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
