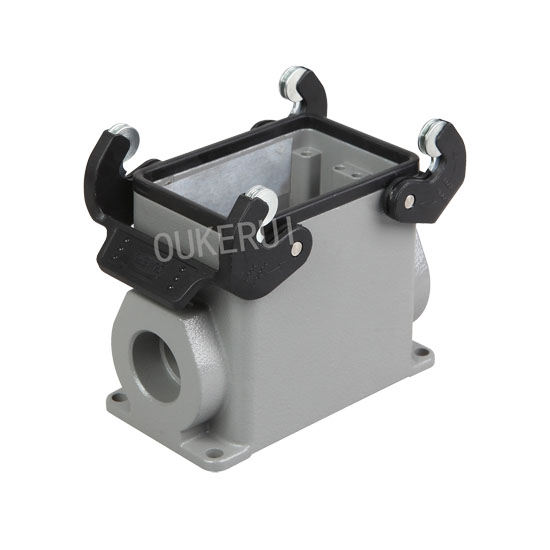

32A Surface Mounting Heavy Duty Connector Housings

Oukerui is a Chinese factory producing 32A Surface Mounting Heavy Duty Connector Housings located in Ningbo, China. We have been manufacturing 32A Surface Mounting Heavy Duty Connector Housings for over 10 years. Our connectors are CE / UL / ISO9001 certified. We sincerely invite you to join our team and make progress together!

Send Inquiry

Product Description

As a professional manufacturer, we would like to offer 32A Surface Mounting Heavy Duty Connector Housings 32A Surface Mounting Heavy Duty Connector Housings for Heavy Duty Connector, Replace Harting for Automation Industry We will deliver the goods as soon as possible, with perfect after-sales service. If you are interested, please feel free to contact us

Product Description

32A Surface Mounting Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-H32A-SG-2PL-M32
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Surface	Epoxy powder Coating
Material	Die-casting zinc
Colour	Grey
Locking element	Lever type
-Material	Stainless steel
Hoods/Housing seal	NBR
Limiting temperatures	-40~+125ºC
Flammability acc.to UL94	V0
Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
Mounting type	Bulkhead/Surface/Cable to Cable
Couple inserts	HA-32,HD-50

The option of HZW-H32A Hoods

Structure types of Hoods	Low & high alternative
Type of entry	Side & top entry alternative
Locking lever type	Single &double locking lever
Bolts for hooking	Stainless steel
Thread Size of cable gland	PG21,PG29,M25,M32

32A Surface Mounting Heavy Duty Connector Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
