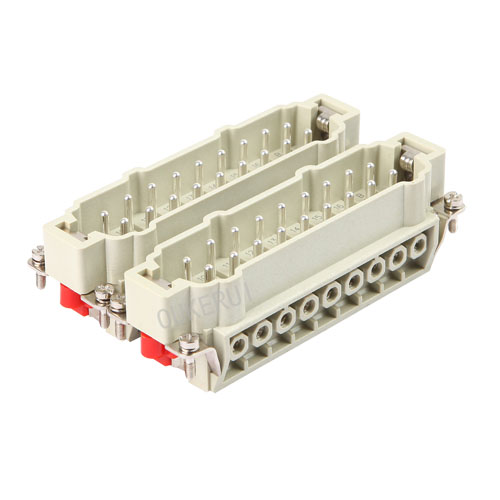

32 Pin 830V Heavy Duty Connector Male Insert

OUKERUI of the Chinese manufacturer provides the 32 Pin 830V Heavy Duty Connector Male Insert quality. Buy high quality 32 Pin 830V Heavy Duty Connector Male Insert at low prices. We firmly believe that only the details are everything that determines success. The high quality of the product is crucial. We will provide customers with the best after-sales service and prompt delivery

Send Inquiry

Product Description

OUKERUI is a leading 32 Pin 830V Heavy Duty Connector Male Insert manufacturer, supplier and exporter in China. After understanding the product quality, many customers are satisfied with our 32 Pin 830V Heavy Duty Connector Male Insert. 32 Pin Rectangular Rugged Electrical Connector with IP65 Waterproof.Our products have a good price advantage and cover most of the European and American markets

Product Description

32 Pin 830V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HVE-032M
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HVE-032M
Terminal type	Screw Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	400/690V
Rated Impulse Voltage	6KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Male
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	16A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Screw terminal tightening	0.5Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge	1.0-2.5mm2(AWG18-14)
Stripping length	7-9mm

32 Pin 830V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
