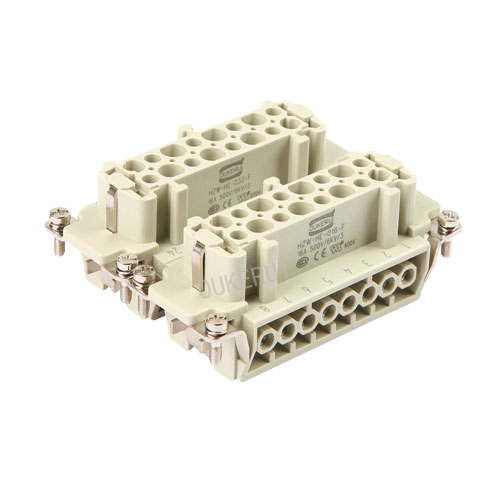

32 Pin 16A 500V Heavy Duty Connector Female Insert

High quality 32 Pin 16A 500V Heavy Duty Connector Female Insert is offered by China manufacturer OUKERUI 32 Pin 16A 500V Heavy Duty Connector Female Insert that is high quality directly with low price. We have our own factory, design and manufacture ourselves, at a competitive price.Request a free quote now! Worldwide shipping Online 1-day delivery.OUKERUI is a professional manufacturer of high performance connectors. 32 Pin 16A 500V Heavy Duty Connector Female Insert. The number of connectors is 32, with 16A operating current and 500V operating voltage. 32 Pin 16A 500V Heavy Duty Connector Female Insert. Factory direct sales, reliable quality heavy duty connectors for the mechanical industry, Compatible with Harting

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of high performance connectors. 32 Pin 16A 500V Heavy Duty Connector Female Insert. The number of connectors is 32, with 16A operating current and 500V operating voltage. 32 Pin 16A 500V Heavy Duty Connector Female Insert. Factory direct sales, reliable quality heavy duty connectors for the mechanical industry, Compatible with Harting

Product Description

32 Pin 16A 500V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HE-032-F
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HE-032-F
Terminal type	Screw Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	500V
Rated Impulse Voltage	6KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	16A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Screw terminal tightening	0.5Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge	1.0-2.5mm2(AWG18-14)
Stripping length	7-9mm

32 Pin 16A 500V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
