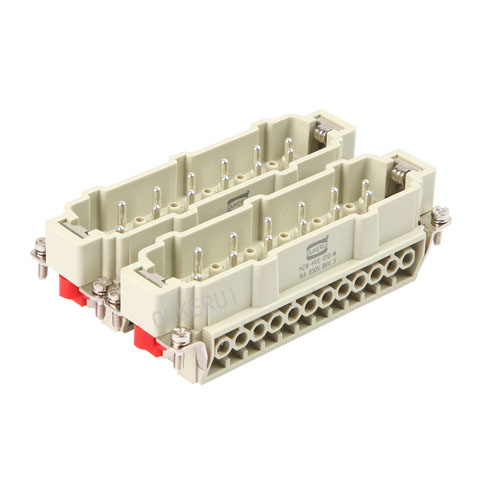

20 Pin 16A 830V Heavy Duty Connector Male Insert
  • 20 Pin 16A 830V Heavy Duty Connector Male Insert20 Pin 16A 830V Heavy Duty Connector Male Insert

20 Pin 16A 830V Heavy Duty Connector Male Insert

OUKERUI is 20 Pin 16A 830V Heavy Duty Connector Male Insert manufacturer and supplier in China, able to wholesale 20 Pin 16A 830V Heavy Duty Connector Male Insert. We provide professional service and better price. If you are interested in our 20 Pin 16A 830V Heavy Duty Connector Male Insert, Please contact us. Maintain reliable quality, considerate price and complex services

Send Inquiry

Product Description

OUKERUI is a professional 20 Pin 16A 830V Heavy Duty Connector Male Insert China company. Please contact us. Maintain reliable quality, considerate price and complex services manufacturer and supplier. 20 pin, crimp, heavy duty contact, ISO90001 approved production for installation and replacement in Harting, Ilme. For harsh environments with high performance Hdc multipole connectors, our focus is to maintain a high level of professionalism, service and quality.

Product Description

20 Pin 16A 830V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HVE-020M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HVE-020M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 830V
Rated Impulse Voltage 8KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)
Stripping length 7-9mm

20 Pin 16A 830V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: 20 Pin 16A 830V Heavy Duty Connector Male Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
