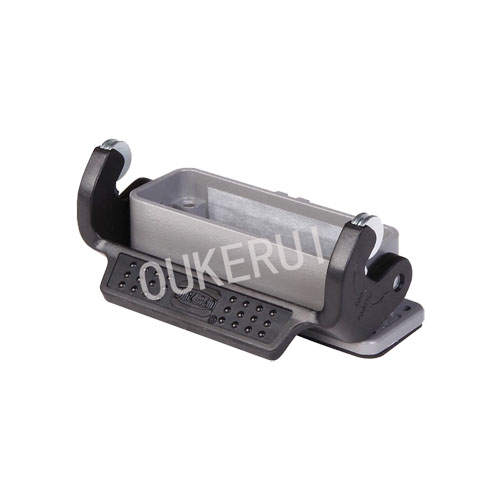

16A Bulkhead Mounting Heavy Duty Connector Housings

As a professional maker, we are willing to provide you with high quality 16A Bulkhead Mounting Heavy Duty Connector Housings We will provide first-class after-sales service and fast delivery. Our products are known nationwide for reliability and high quality. And exported to Russia, Australia, Canada, Spain and other parts of the world. We hope to cooperate with you for a long time.

Send Inquiry

Product Description

OUKERUI is China's leading 16A Bulkhead Mounting Heavy Duty Connector Housings manufacturer, supplier and exporter. We have Hdc Connector to Be Used for Wire Harness and Control Cabinet, Replace Harting Series. We have supreme design high quality raw material High efficiency and competitive price is every customer's need And that's what we can offer you.

Product Description

16A Bulkhead Mounting Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-H16A-ST-1PL
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Surface	Epoxy powder Coating
Material	Die-casting zinc
Colour	Grey
Locking element	Lever type
-Material	Stainless steel
Hoods/Housing seal	NBR
Limiting temperatures	-40~+125ºC
Flammability acc.to UL94	V0
Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
Mounting type	Bulkhead/Surface/Cable to Cable
Couple inserts	HA-016,HD-025

The option of HZW-H16A Hoods

Structure types of Hoods	Low & high alternative
Type of entry	Side & top entry alternative
Locking lever type	Single &double locking lever
Bolts for hooking	Stainless steel
Thread Size of cable gland	PG16,PG21,M20,M25

16A Bulkhead Mounting Heavy Duty Connector Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
