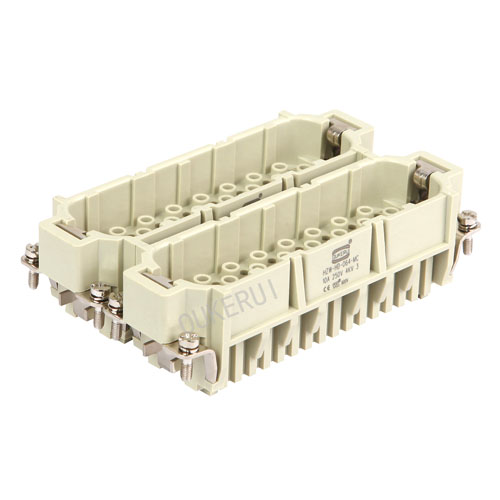

128 Pin Heavy Duty Connector Male Insert

As a professional maker, we are willing to provide you with high quality 128 Pin Heavy Duty Connector Male Insert . We offer you the best after-sales service and fast delivery. These products are known throughout the country for their reliable quality. And exported to Europe, America, Africa and Australia.Looking to the future, the company will continue to develop and grow.

Send Inquiry

Product Description

OUKERUI is China's leading 128 Pin Heavy Duty Connector Male Insert manufacturer, supplier and exporter. The Heavy Duty Rectangular Connector (HDC) is an industrial connector designed to transmit power, data and signals in the harshest conditions. Our HDC connectors offer reliable solutions with solid or thermoplastic housings and aluminum housings with ingress protection ratings from IP65 to IP69k.

Product Description

128 Pin Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HD-128MC
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HD-128MC
Terminal type	Crimp Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	250V
Rated Impulse Voltage	4KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Male
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	10A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Surface Treatment	Silver/Gold Plated
Wire Gauge	0.14-2.5mm2(AWG26-14)

128 Pin Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
