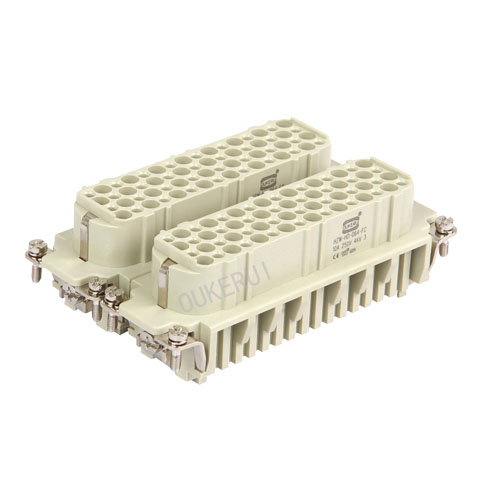

128 Pin Heavy Duty Connector Female Insert

As a professional manufacturer of high quality 128 Pin Heavy Duty Connector Female Insert Please rest assured to buy128 Pin Heavy Duty Connector Female Insert Insert from our factory. Meeting customer needs and complying with national and local laws, regulations and other environmental regulations. Reduce consumption, save energy and make full use of resources. Continuous innovation, development of new materials and new processes, as well as production of energy-efficient and environmentally friendly products

Send Inquiry

Product Description

With years of experience in 128 Pin Heavy Duty Connector Female Insert production OUKERUI can therefore supply a variety of 128 Pin Heavy Duty Connector Female Insert. High quality and versatile 128 Pin Heavy Duty Connector Female Insert. IP65 Heavy Duty Connector with CE and UL Approval Compliant with Harting Relevant Models 128 Pin Heavy Duty Connector Female Insert are used in many industries. These include textile machinery, transportation technology, electric power, electric vehicles, communication technology, and other equipment that requires electrical connections and models.

Product Description

128 Pin Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HD-128FC
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HD-128FC
Terminal type	Crimp Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	250V
Rated Impulse Voltage	4KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	10A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Surface Treatment	Silver/Gold Plated
Wire Gauge	0.14-2.5mm2(AWG26-14)

128 Pin Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
