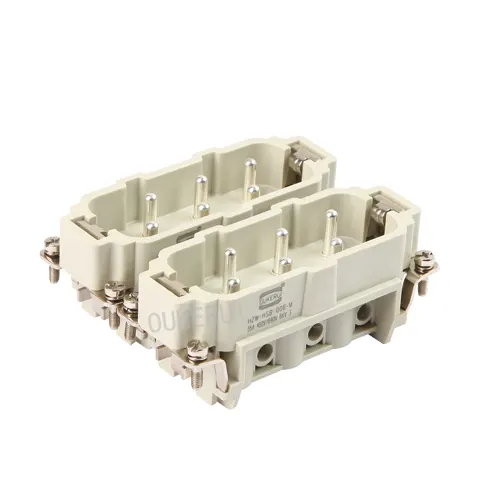

12 Pin 35A Heavy Duty Connector Male Insert

OUKERUI is professional China if you are looking for the best 12 Pin 35A Heavy Duty Connector Male Insert Manufacturer and Supplier of 12 Pin 35A Connector Heavy Duty Male Insert Our products are better in price and cover most European and American markets. We would like to be your long-term partner in China.

Send Inquiry PDF DownLoad

Product Description

OUKERUI is professional China if you are looking for the best 12 pin 35A heavy duty plug Manufacturer and Supplier of 12 Pin 35A Connector Heavy Duty Male Insert Our products are more competitively priced and cover most European and American markets. We would like to be your long-term partner in China.

Product Description

12 Pin 35A Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HSB-012M
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HSB-012M
Terminal type	Screw Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	400/690V
Rated Impulse Voltage	6KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Male
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	35A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Screw terminal tightening	1.2Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge	4.0-6.0mm2(AWG12-10)

12 Pin 35A Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
